ZEISS DotScan
Optični senzor za zajemanje površin proste oblike
Senzorji kromatične bele svetlobe omogočajo brezkontaktni zajem topografije obdelovanca. Običajno se uporabljajo, kadar občutljive, odsevne ali nizko-kontrastne površine otežujejo uporabo drugih optičnih senzorjev.
Lastnosti
![ZEISS DotScan: Optični senzor za zajemanje površin proste oblike]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","small":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","medium":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","large":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","max":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg"} "ZEISS DotScan: Optični senzor za zajemanje površin proste oblike")

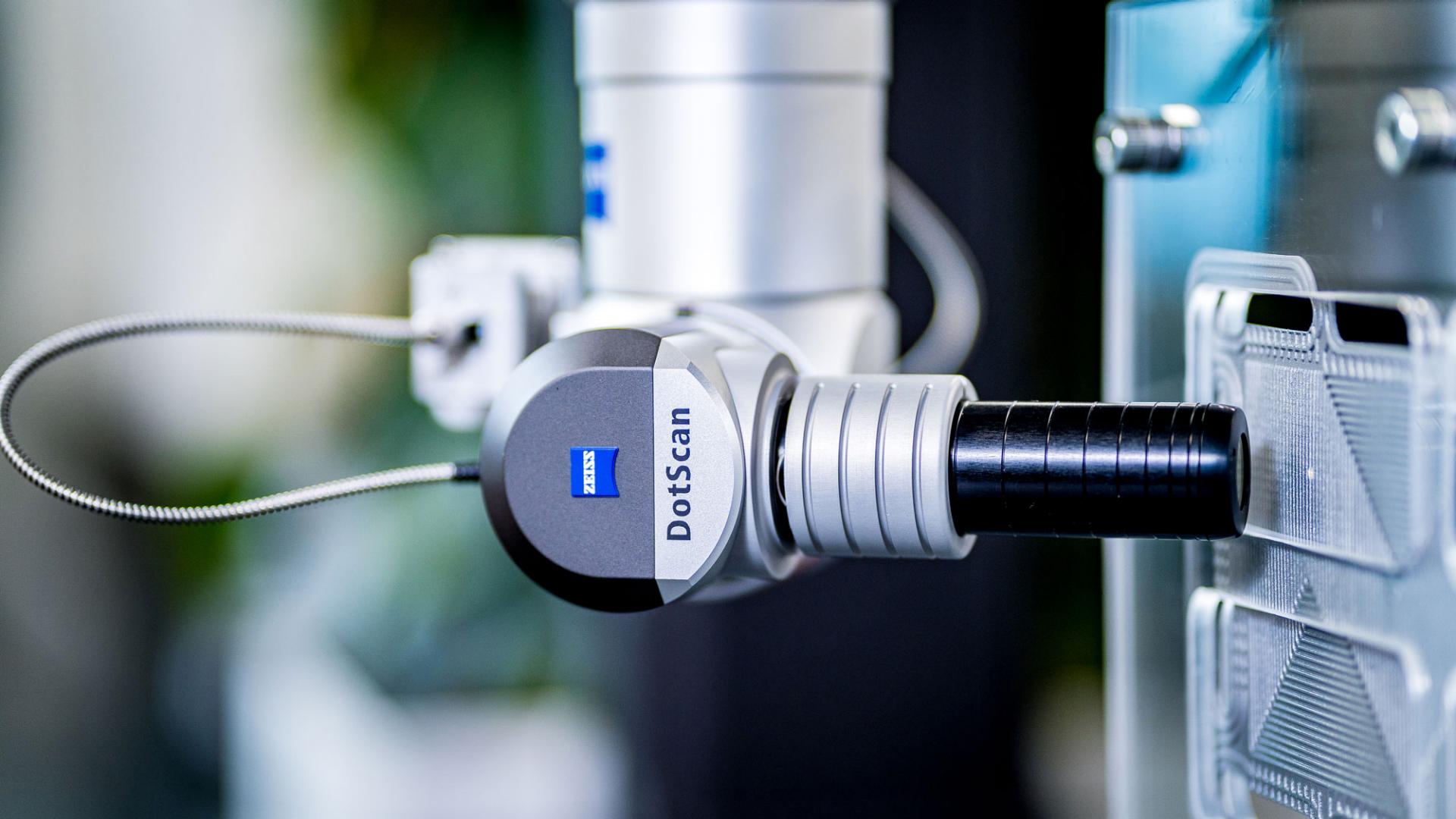

ZEISS DotScan je izjemna izbira za zajem površin proste oblike in celo zelo majhnih struktur. Senzorji kromatične bele svetlobe – in s tem tudi ZEISS DotScan – so odlična izbira, zlasti kadar tipala ali senzorji kamere pri občutljivih, mehkih, odsevnih ali nizkokontrastnih površinah dosežejo svoje meje.

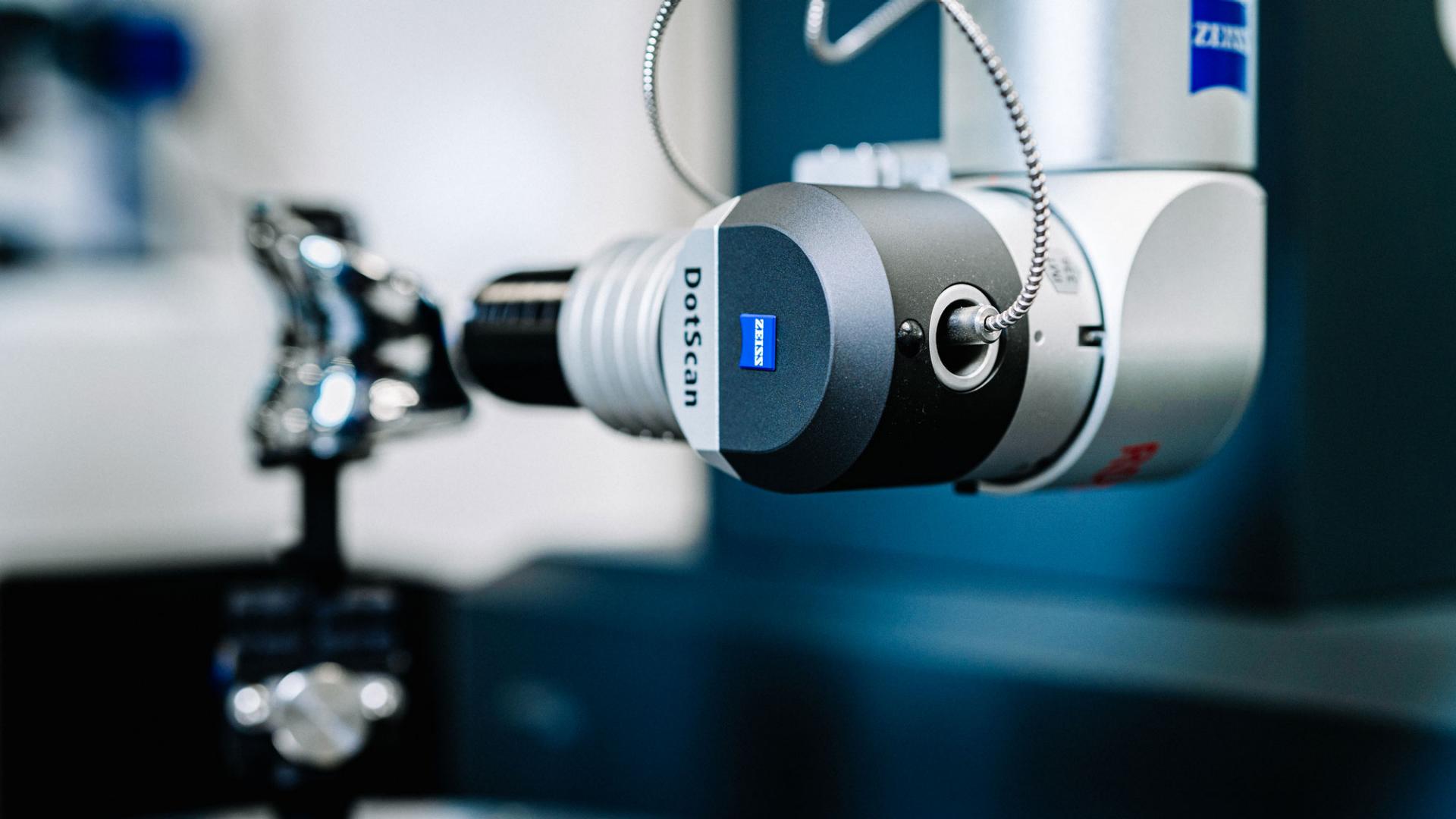

Z uporabo ZEISS DotScan lahko močno odsevne površine, kot so kovinske komponente v kolenskih vsadkih, skeniramo brez potrebe po injiciranju kontrastnega sredstva. To omogoča tudi razlikovanje prozornih lakiranih površin od drugih kovinskih plasti pod njimi.
![ZEISS DotScan: Optični senzor za zajemanje površin proste oblike]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","small":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","medium":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","large":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","max":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg"} "ZEISS DotScan: Optični senzor za zajemanje površin proste oblike")

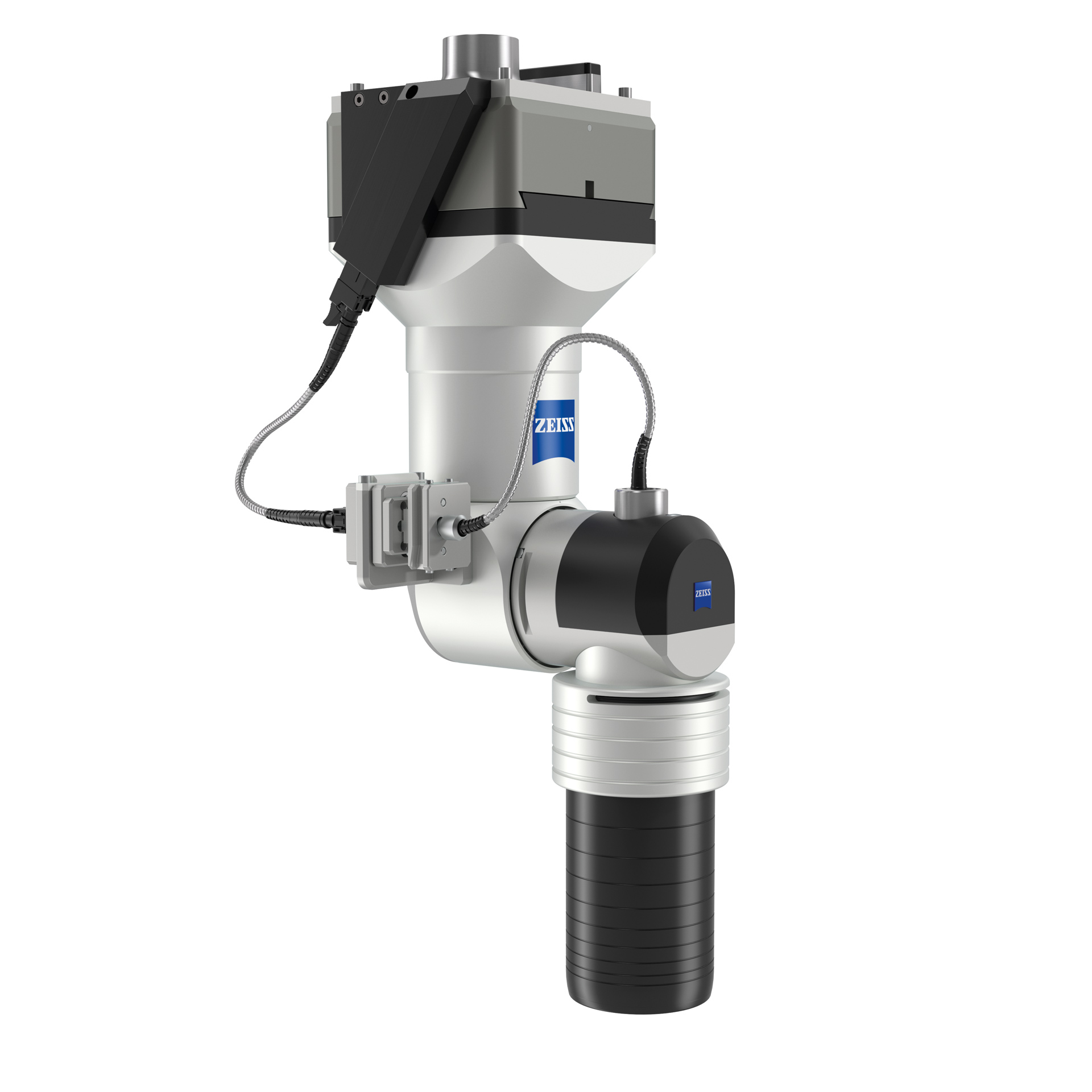

Fleksibilna uporaba
ZEISS DotScan je na voljo v treh velikostih za tri različna merilna območja: 10, 3 in 1 mm. Senzor je mogoče popolnoma avtomatizirano zamenjati z drugimi kontaktnimi ali optičnimi senzorji v eni sami seriji CNC. S pomikom 2,5 stopinje lahko z gibljivo osjo poravnate senzor ZEISS DotScan tako, da je pravokotno na površino skenirane komponente.
In ker je največji merilni kot senzorja ZEISS DotScan 1 mm plus/minus 30 stopinj, je mogoče skenirati tudi bolj močno ukrivljene komponente. Zaradi načina delovanja senzorja je mogoče brez težav skenirati najrazličnejše materiale z vseh strani. V povezavi z vrtljivo mizo je mogoče izvajati tudi meritve s štiriosnim skeniranjem.
