Optični koordinatni merilni stroji
Visoko natančna optika za prilagodljive merilne naloge
Brezkontaktno merjenje z možnostmi taktilne izvedbe
Optični koordinatni merilni stroji (OKMS) iz serije ZEISS Optical Series navdušujejo s sistemi kamer visoke ločljivosti, spremenljivo osvetlitvijo in izpopolnjeno programsko opremo za hitre in natančne rezultate meritev. Brezstična optična merilna tehnologija pomeni, da je mogoče z visoko stopnjo natančnosti izmeriti tudi posebej občutljive, tankostenske ali ravne obdelovance, kot so optični elementi, brizgani obdelovanci, folije, prebiti in upognjeni deli. Da bi razširili obseg uporabe, je mogoče sisteme ZEISS Optical Series dopolniti z dodatnimi tipali – za zelo natančne optične in taktilne meritve z enim samim KMS.

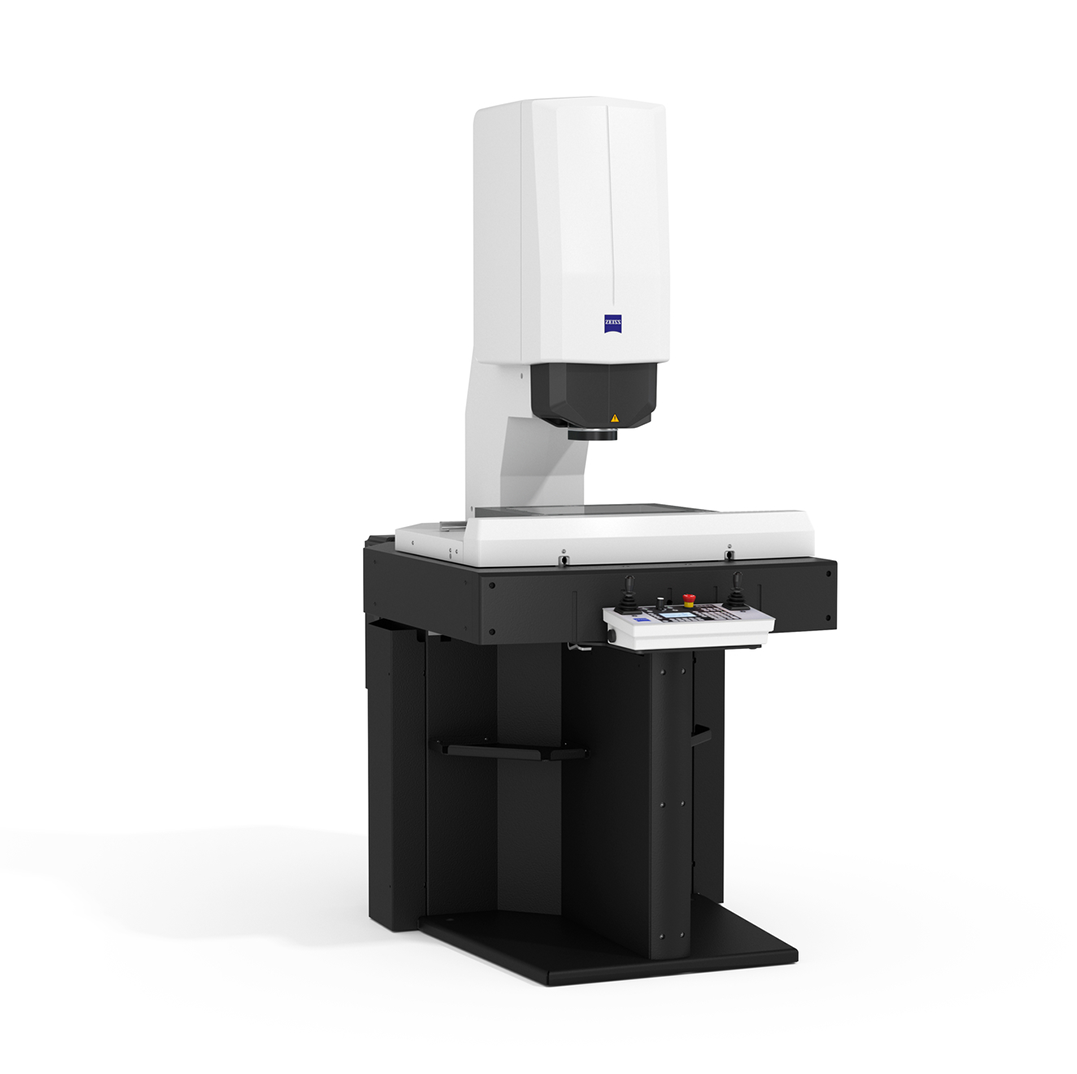

![ZEISS O-DETECT]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.100.75.file/zeiss_o_detect_4_3.png","small":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.360.270.file/zeiss_o_detect_4_3.png","medium":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.768.576.file/zeiss_o_detect_4_3.png","large":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_o_detect_4_3.png","xlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1280.960.file/zeiss_o_detect_4_3.png","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original./zeiss_o_detect_4_3.png","max":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original./zeiss_o_detect_4_3.png"} "ZEISS O-DETECT")

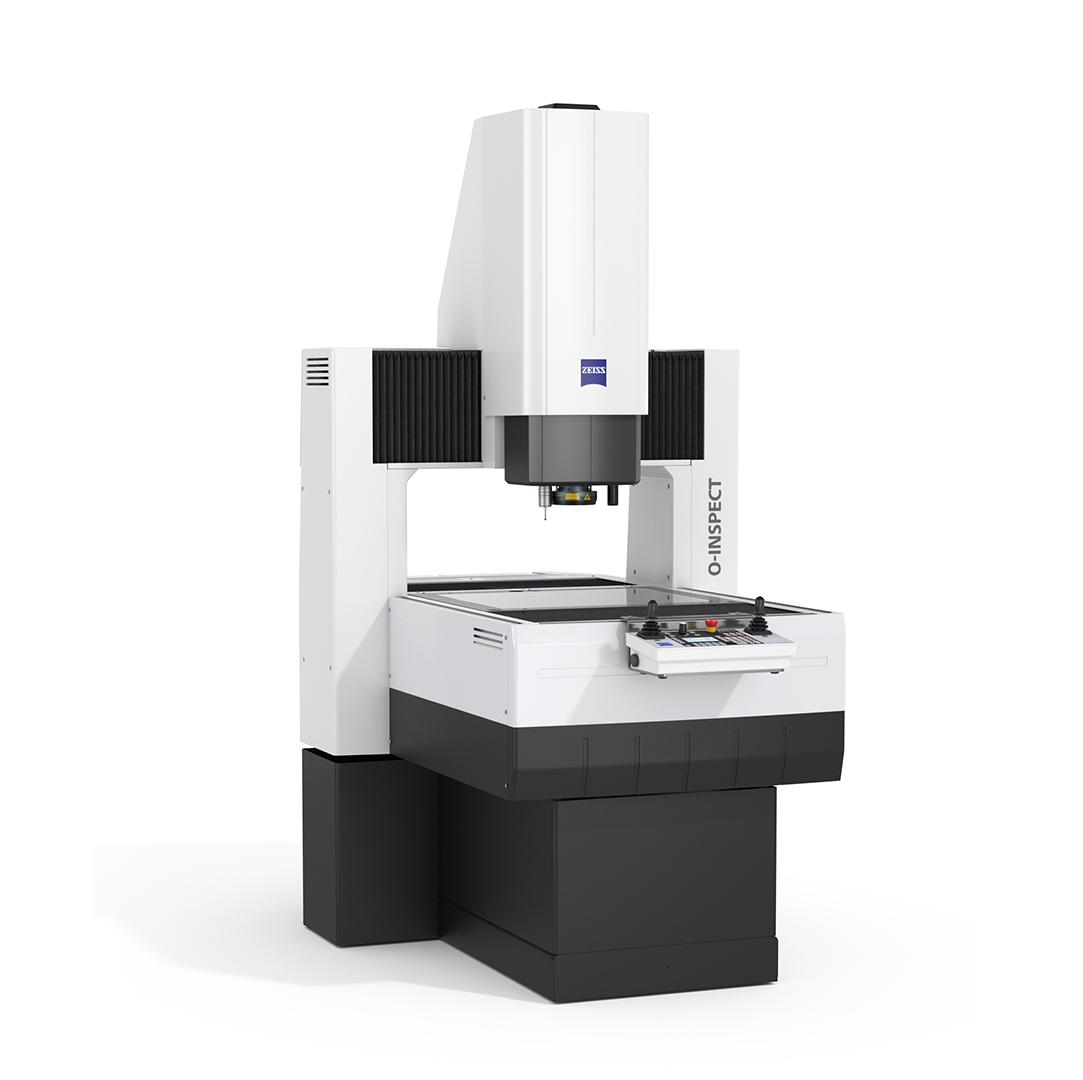

![ZEISS O-INSPECT]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.100.75.file/zeiss_o_inspect_4_3.png","small":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.360.270.file/zeiss_o_inspect_4_3.png","medium":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.768.576.file/zeiss_o_inspect_4_3.png","large":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_o_inspect_4_3.png","xlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1280.960.file/zeiss_o_inspect_4_3.png","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original./zeiss_o_inspect_4_3.png","max":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original./zeiss_o_inspect_4_3.png"} "ZEISS O-INSPECT")

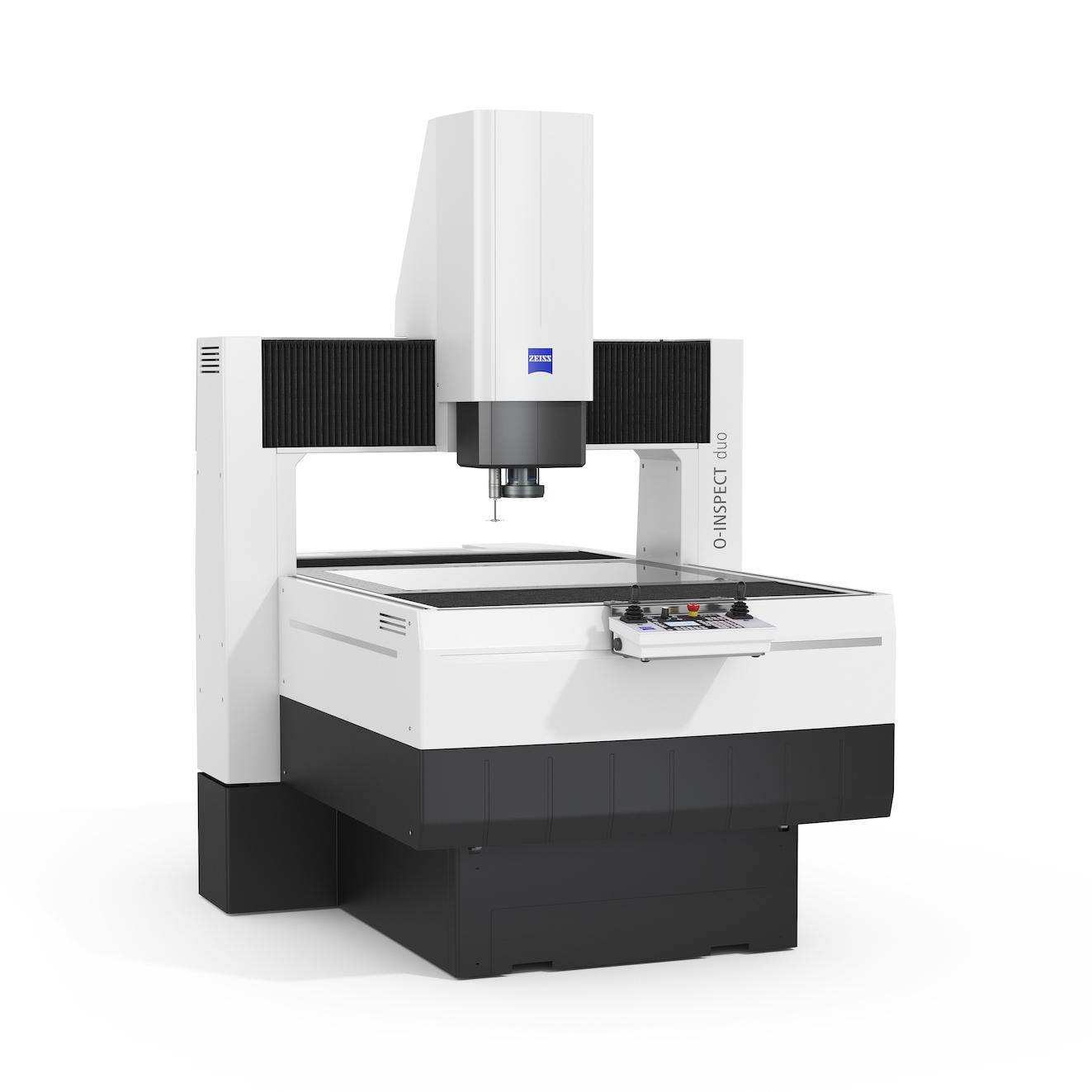

![ZEISS O-INSPECT duo]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.100.75.file/zeiss-o-inspect-duo-perspective-taktil.jpg","small":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.360.270.file/zeiss-o-inspect-duo-perspective-taktil.jpg","medium":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.768.576.file/zeiss-o-inspect-duo-perspective-taktil.jpg","large":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1024.768.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1280.960.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1440.1080.file/zeiss-o-inspect-duo-perspective-taktil.jpg","max":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original./zeiss-o-inspect-duo-perspective-taktil.jpg"} "ZEISS O-INSPECT duo")
![Multisenzorska tehnologija]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.100.75.0,221,1280,1181.file/multisensor.jpg","small":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.360.270.0,221,1280,1181.file/multisensor.jpg","medium":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.768.576.0,221,1280,1181.file/multisensor.jpg","large":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1024.768.0,221,1280,1181.file/multisensor.jpg","xlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1280.960.0,221,1280,1181.file/multisensor.jpg","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1280.960.0,221,1280,1181.file/multisensor.jpg","max":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1280.960.0,221,1280,1181.file/multisensor.jpg"} "Multisenzorska tehnologija")
Multisenzorska tehnologija
Kombinacija optične in taktilne merilne tehnologije

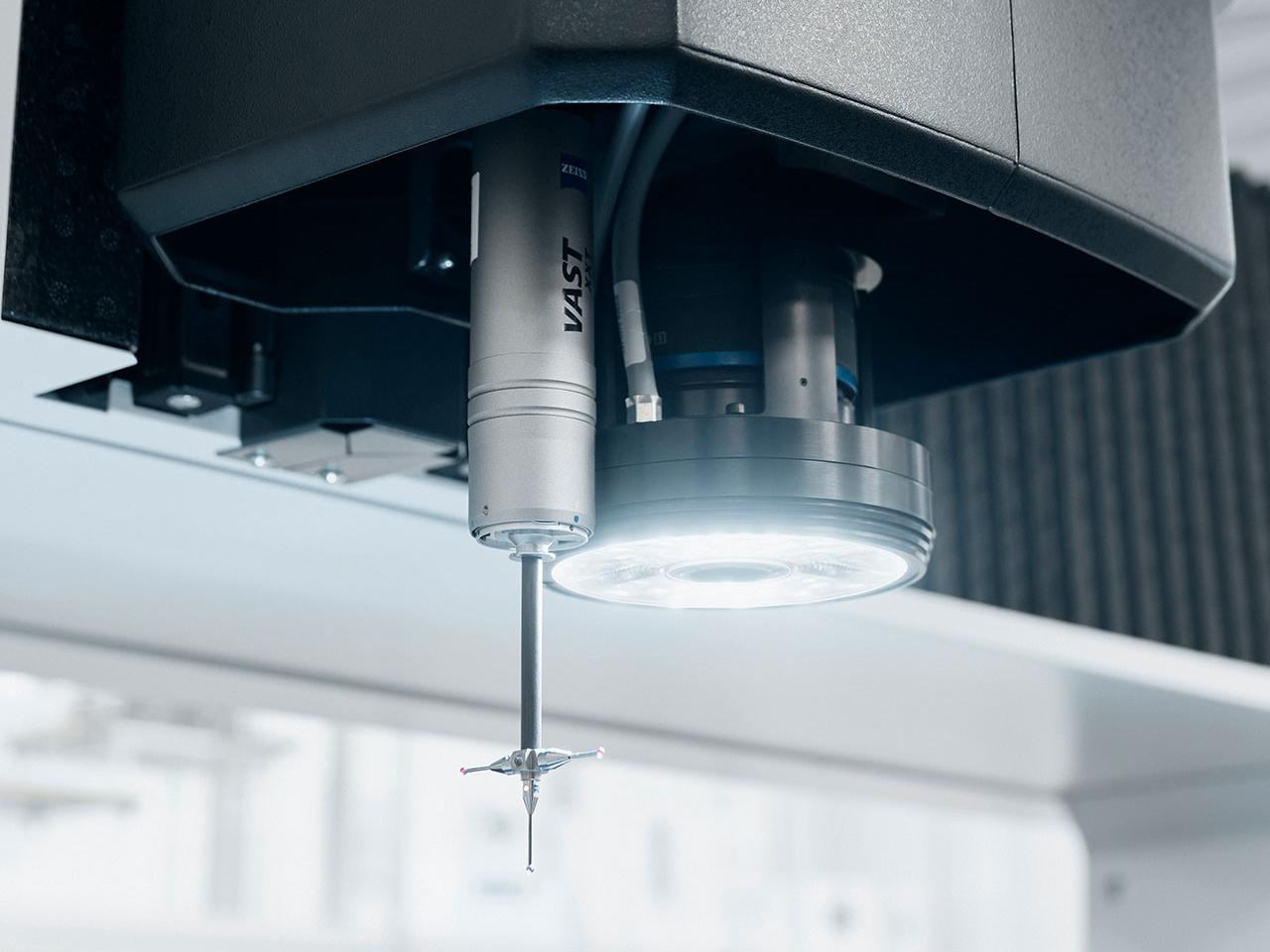

Vsi izdelki iz serije Optical Series so združljivi s taktilnim senzorjem in tako poleg zelo natančnih 2D optičnih meritev omogočajo tudi pridobivanje taktilnih 3D merilnih podatkov. Odvisno od modela je taktilna merilna glava na voljo kot dodatna oprema ali pa je vključena v standardni paket.
![Različne velikosti za različne zahteve]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.100.56.0,280,1280,1000.file/groessen.jpg","small":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.360.203.0,280,1280,1000.file/groessen.jpg","medium":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.768.432.0,280,1280,1000.file/groessen.jpg","large":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1024.576.0,280,1280,1000.file/groessen.jpg","xlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1280.720.0,280,1280,1000.file/groessen.jpg","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1280.720.0,280,1280,1000.file/groessen.jpg","max":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1280.720.0,280,1280,1000.file/groessen.jpg"} "Različne velikosti za različne zahteve")
Različne velikosti
Različne velikosti za različne zahteve

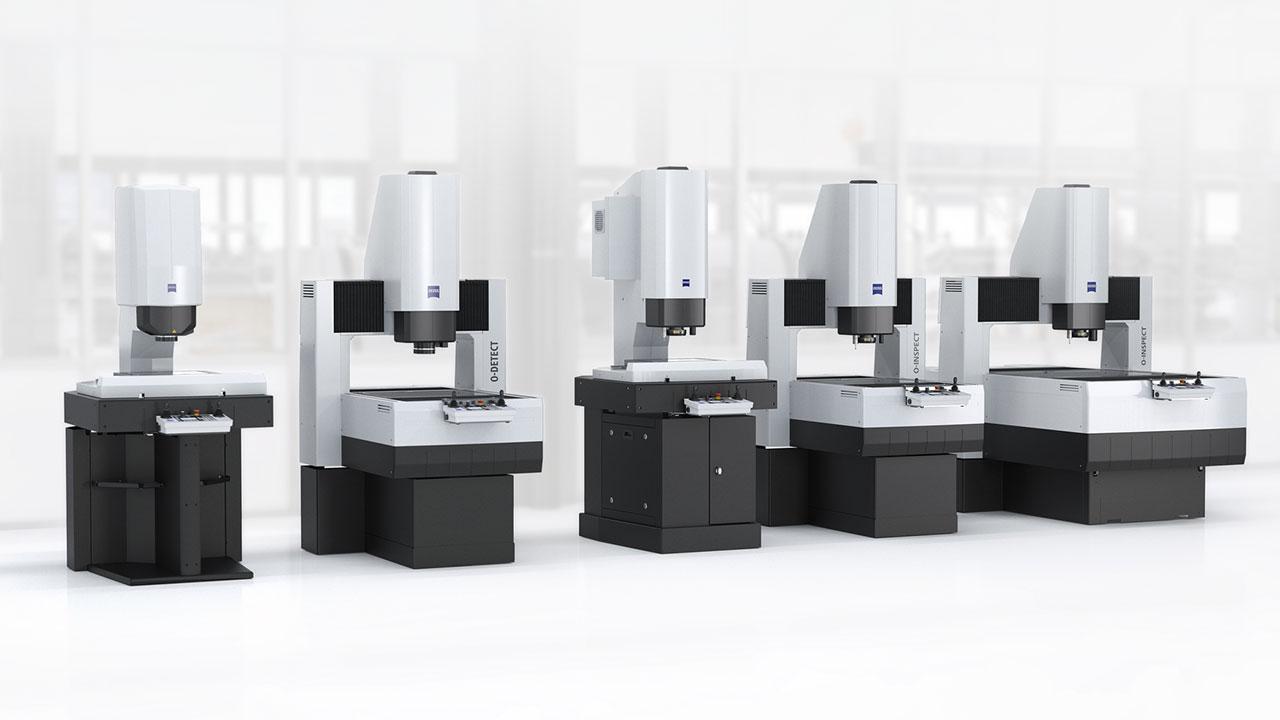

ZEISS O-DETECT in ZEISS O-INSPECT sta na voljo v različnih velikostih in sta primerna za široko paleto aplikacij – od majhnih, občutljivih delov do večjih obdelovancev.
Tehnična primerjava

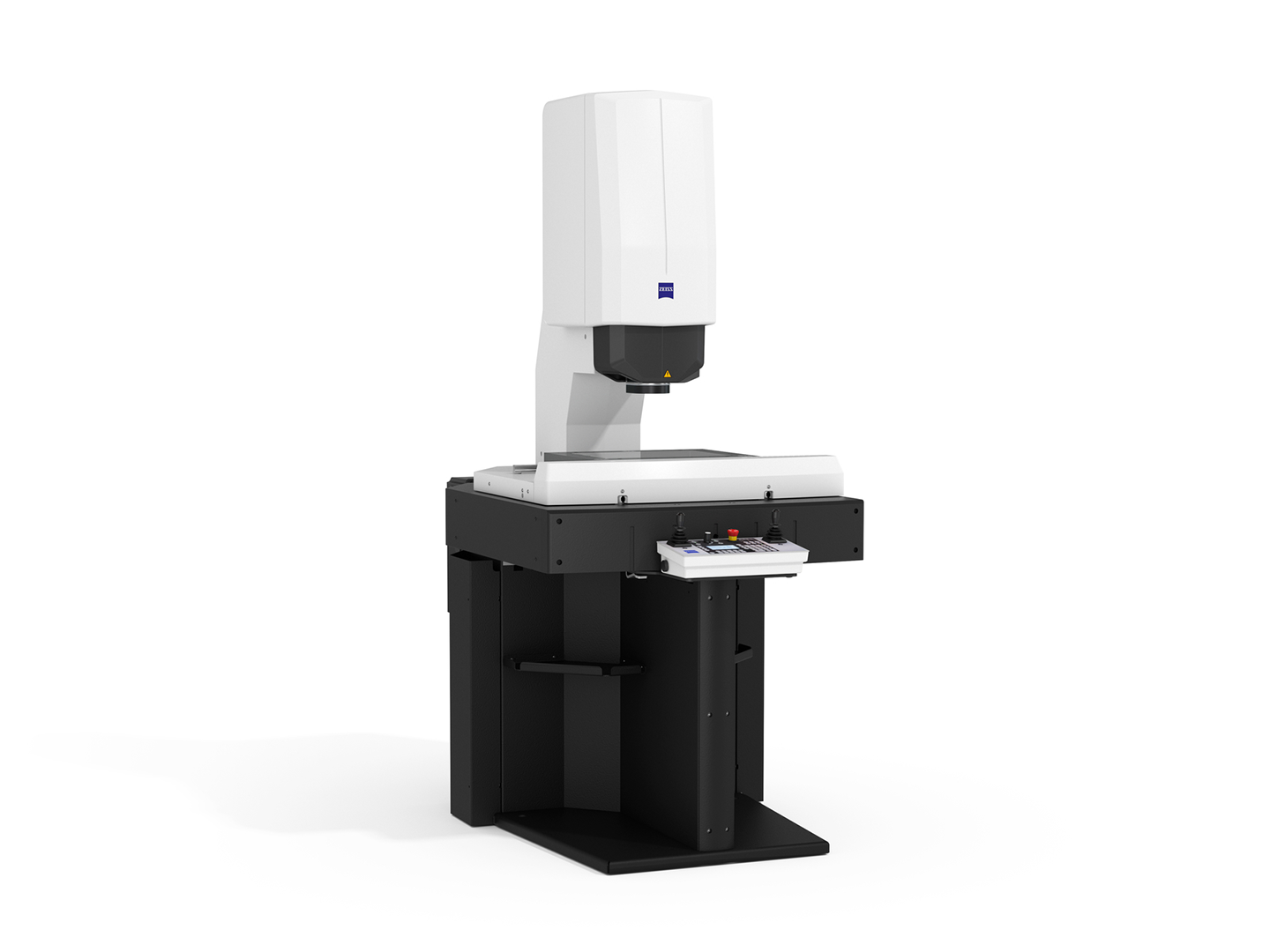

![ZEISS O-DETECT]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.100.100.142,6,1219,1083.file/zeiss_o_detect_4_3.png","small":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.360.360.142,6,1219,1083.file/zeiss_o_detect_4_3.png","medium":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.768.768.142,6,1219,1083.file/zeiss_o_detect_4_3.png","large":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1024.1024.142,6,1219,1083.file/zeiss_o_detect_4_3.png","xlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1077.1077.142,6,1219,1083.file/zeiss_o_detect_4_3.png","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1077.1077.142,6,1219,1083.file/zeiss_o_detect_4_3.png","max":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1077.1077.142,6,1219,1083.file/zeiss_o_detect_4_3.png"} "ZEISS O-DETECT")
|
![ZEISS O-INSPECT]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.100.100.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","small":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.360.360.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","medium":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.768.768.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","large":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1024.1024.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","xlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1083.1083.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1083.1083.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","max":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1083.1083.185,0,1268,1083.file/zeiss_o_inspect_4_3.png"} "ZEISS O-INSPECT")
|

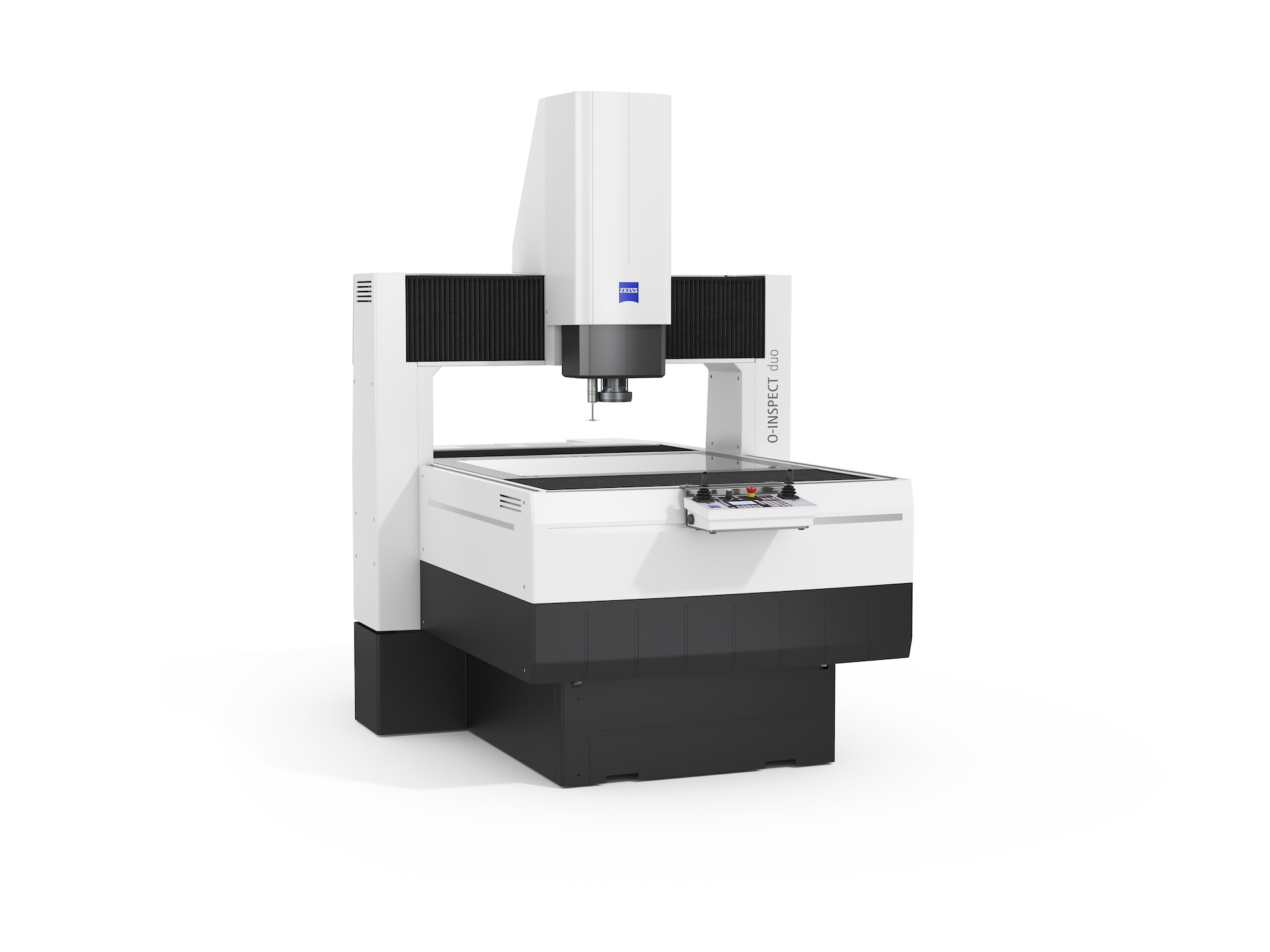

![ZEISS O-INSPECT duo]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.100.100.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","small":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.360.360.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","medium":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.768.768.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","large":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1024.1024.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1280.1280.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1323.1323.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","max":"https://www.zeiss.si/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1323.1323.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg"} "ZEISS O-INSPECT duo")
|
|
|---|---|---|---|
|
Vrsta izdelka |
Koordinatni merilni stroj |
Koordinatni merilni stroj |
Mikroskop in koordinatni merilni stroj |
|
Merilno območje v dm |
3/2/2; 5/4/3 |
3/2/2; 5/4/3; 8/6/3 |
8/6/3 |
|
Optično tipalo |
ZEISS INVENTA D1 |
ZEISS Discovery.V12 |
ZEISS Discovery.V12 |
|
Kamera |
5 MP, črno/belo |
Standard 100 ali Scout 160 ali Scout 240 |
Scout 160 c |
|
Optična povečava |
1,0× |
Do 12× |
Do 12× |
|
Druga tipala |
ZEISS XDT (izbirno) |
ZEISS VAST XXT |
ZEISS VAST XXT |
|
Pregledna kamera |
Da |
Ne |
Ne |
|
Osvetlitev |
8-segmentni svetlobni obroč LED z modrimi in belimi diodami LED, koaksialno vpadno svetlobo in osvetlitev ozadja, razpršena svetloba obroča (po izbiri) |
8-segmentni svetlobni obroč LED z rdečimi in modrimi diodami LED, koaksialno vpadno svetlobo in osvetlitvijo ozadja |
16-segmentni svetlobni obroč LED z belimi diodami LED, koaksialno vpadno svetlobo in osvetlitvijo ozadja |
|
Natančnost od |
1D: 1,6 μm + L/200 μm |
1D: 1,4 μm + L/250 μm |
1D: 1,5 µm + L/250 µm (8/6/3) |
|
Programska oprema |
ZEISS CALYPSO |
ZEISS CALYPSO |
ZEISS CALYPSO |
