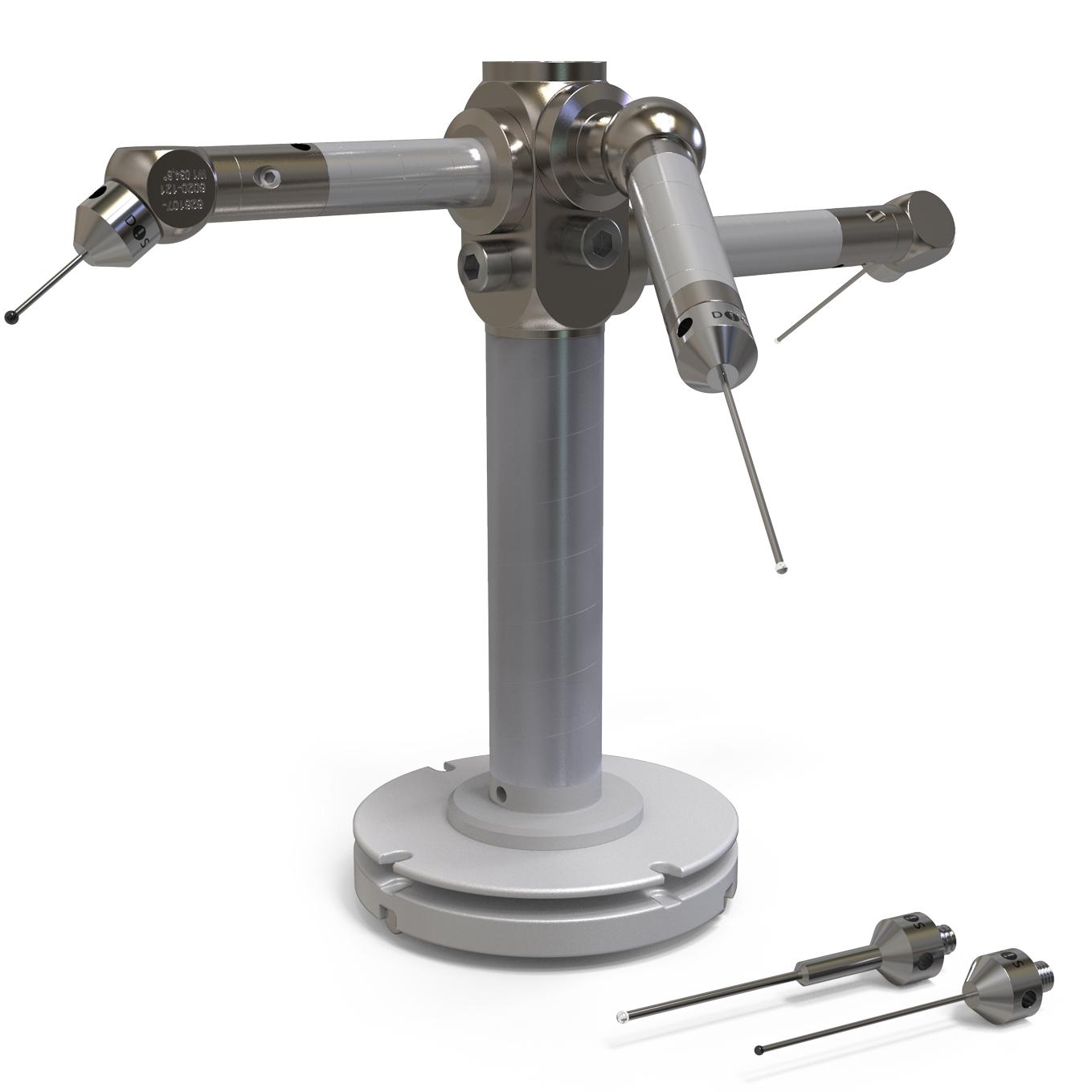

Diamond!Scan® družbe ZEISS
Iz najtršega materiala na svetu
Naša tipala ZEISS Diamond!Scan so bila posebej razvita za meritve na zelo trdih keramičnih površinah ali izjemno mehkih aluminijevih litinah. Vsebujejo diamant – najtrši material na svetu.
Lastnosti
ZEISS Diamond!Scan
Naša ponudba izdelkov
![]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.100.67.1,0,1920,1279.file/solid-diamond-scan.jpg","small":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.360.240.1,0,1920,1279.file/solid-diamond-scan.jpg","medium":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.768.512.1,0,1920,1279.file/solid-diamond-scan.jpg","large":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1024.683.1,0,1920,1279.file/solid-diamond-scan.jpg","xlarge":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1280.853.1,0,1920,1279.file/solid-diamond-scan.jpg","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1440.960.1,0,1920,1279.file/solid-diamond-scan.jpg","max":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1919.1279.1,0,1920,1279.file/solid-diamond-scan.jpg"})

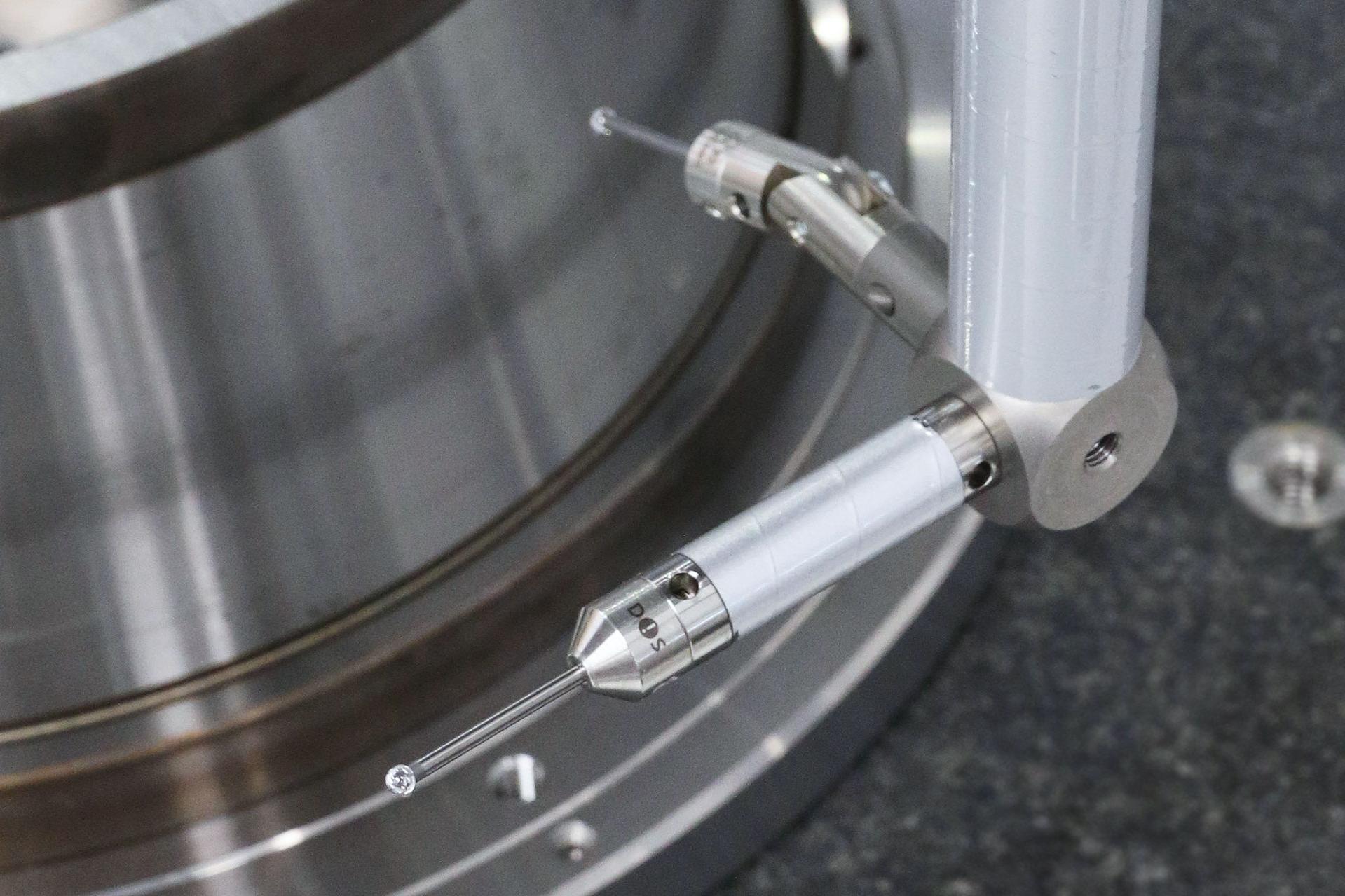

Trden diamant
Za najtežje merilne naloge
Naš ZEISS Diamond!Scan je tipalo s kroglico, izdelano iz trdnega diamanta. Tipalo je zelo trpežno in se ne obrablja niti ob izpostavljenosti trdim materialom. Na trdno diamantno tipalo se lahko zanesete tudi pri enotočkovnem sondiranju z močno zgoščeno obremenitvijo. Skratka: naše trdna diamantna tipala priporočamo za najzahtevnejše merilne naloge. Na voljo so s premeri DK 1, DK 2 in DK 3.
![]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.100.67.file/diamond-coated-stylus.jpg","small":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.360.240.file/diamond-coated-stylus.jpg","medium":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.768.512.file/diamond-coated-stylus.jpg","large":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.1024.683.file/diamond-coated-stylus.jpg","xlarge":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.1280.853.file/diamond-coated-stylus.jpg","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.1440.960.file/diamond-coated-stylus.jpg","max":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original./diamond-coated-stylus.jpg"})

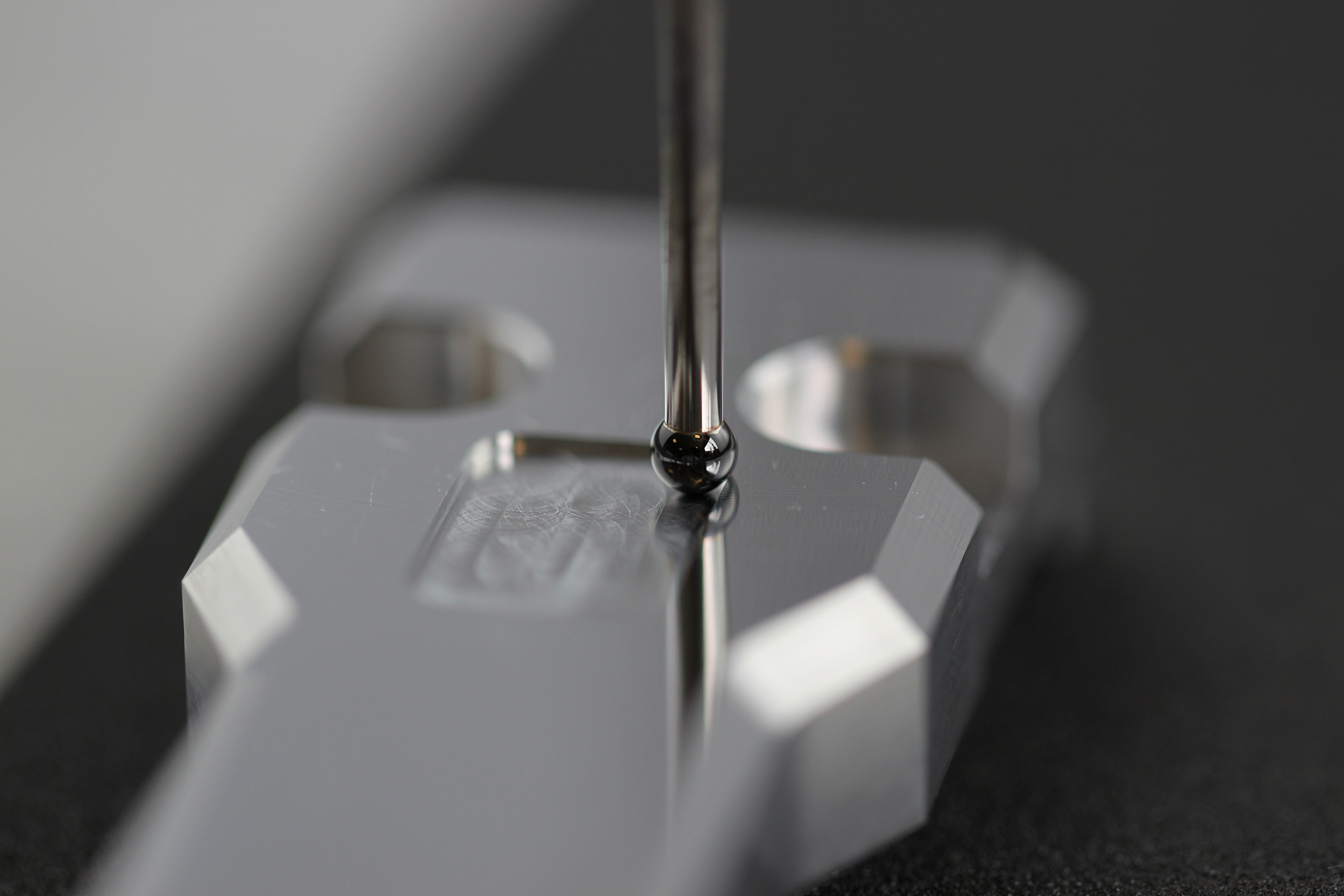

Z diamanti prevlečena tipala
Merjenje brez kopičenja materiala
Z diamantom prevlečena tipala so sestavljena iz keramične kroglice, prevlečene z diamantom. Uporabljajo se predvsem za skeniranje mehkih materialov. Na kroglici se namreč ne odlaga material z obdelovanca. Dodatna prednost je, da so prevlečena tipala bolj okrogla z manj kot 150 nm prevleke in so posledično natančnejša ob bistveno nižji ceni. Ta tipala so na voljo s premeri DK 1,05; DK 2,05; DK 3,05; DK 5,05 ali DK 8,05.
![]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.100.67.file/monolithic-stylus.jpg","small":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.360.240.file/monolithic-stylus.jpg","medium":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.768.512.file/monolithic-stylus.jpg","large":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.1024.683.file/monolithic-stylus.jpg","xlarge":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.1280.853.file/monolithic-stylus.jpg","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.1440.960.file/monolithic-stylus.jpg","max":"https://www.zeiss.si/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original./monolithic-stylus.jpg"})

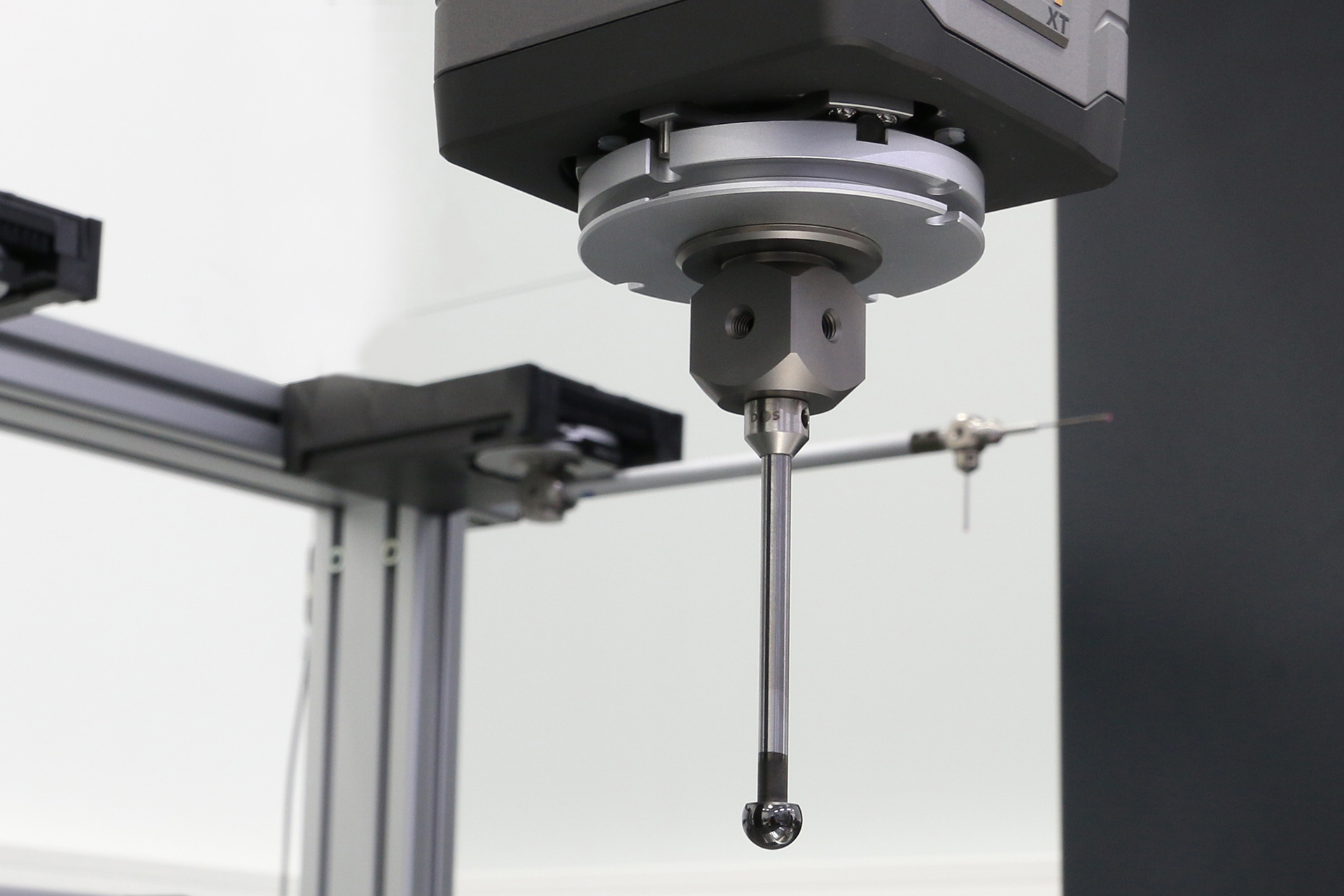

Monolitna tipala
Brezšivna tipala z diamantno prevleko
ZEISS Diamond!Scan mono je monolitno tipalo z diamantno prevleko. To pomeni, da sta kroglica in tipalo izdelana iz enega kosa. Ta rešitev ima več prednosti: Izdelujemo jih lahko z vsakim premerom in vsako tehnično izvedljivo dolžino. Poleg tega ni nevarnosti, da bi se kroglica odlomila, saj je tipalo izdelano »brezšivno«.
Tipala iz trdnega diamanta ali z diamantom prevlečena tipala?
Izbira je odvisna od vaše individualne merilne naloge. Obe vrsti tipal imata svoje prednosti.
