Zagotavljanje kakovosti za pločevinaste sklope
Pregled pločevinastih plošč in pozicioniranje sklopov
Zagotavljanje kakovosti sklopa po posameznih pločevinastih ploščah
Ozke tolerance in brezhibne površine
Posamezne 2D-plošče so osnova za izdelavo pločevinastih sklopov v rotorjih in statorjih. Pločevinasti sklopi so sestavljeni iz številnih plošč, vsaka od njih pa je preluknjana ali lasersko izrezana iz električnih jeklenih plošč in debela manj kot 1 mm. Ključni vidiki kakovosti vključujejo presečno geometrijo rež za sponke, reže za trajne magnete ter notranji in zunanji premer pločevinastih sklopov. Ker so tolerance v mikrometrskem območju, morajo biti plošče ploske in brez igel, da se zagotovi pravilno delovanje elektromotorja.
Ključni izzivi kakovosti za pločevinaste sklope

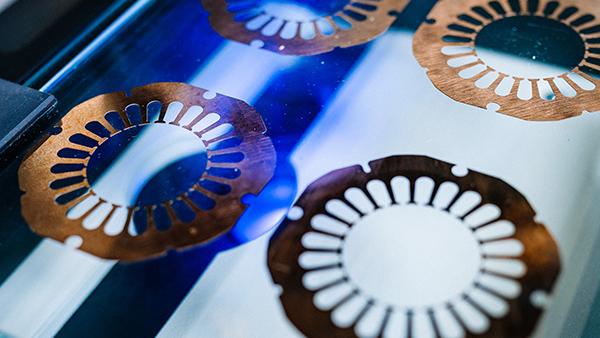

![Pregled posamezne pločevinaste plošče]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.100.56.0,131,600,469.file/03-single-sheet-600px.jpg","small":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.360.203.0,131,600,469.file/03-single-sheet-600px.jpg","medium":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/03-single-sheet-600px.jpg","large":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/03-single-sheet-600px.jpg","xlarge":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/03-single-sheet-600px.jpg","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/03-single-sheet-600px.jpg","max":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/03-single-sheet-600px.jpg"} "Pregled posamezne pločevinaste plošče")
Pregled posamezne pločevinaste plošče
Proizvodnja posameznih plošč
Ker geometrija 2D-plošče določa dimenzije končnih rež statorja in trajnih magnetov, je zelo pomembno, da se te dimenzije izmerijo hitro in z veliko natančnostjo. Debelina pločevinaste plošče in z njo povezana prožnost povzročata izzive pri merjenju.

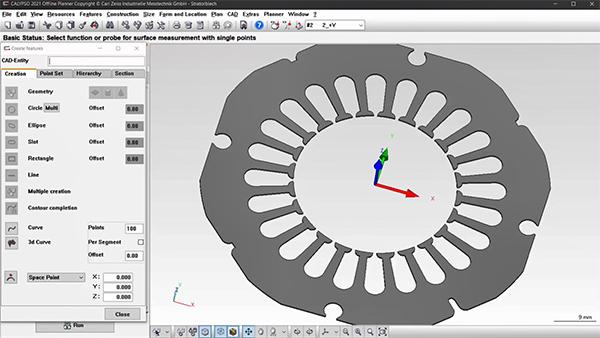

![Geometrijski pregled]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.100.56.0,131,600,469.file/05-calypso-single-sheet-600px.jpg","small":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.360.203.0,131,600,469.file/05-calypso-single-sheet-600px.jpg","medium":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-calypso-single-sheet-600px.jpg","large":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-calypso-single-sheet-600px.jpg","xlarge":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-calypso-single-sheet-600px.jpg","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-calypso-single-sheet-600px.jpg","max":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-calypso-single-sheet-600px.jpg"} "Geometrijski pregled")
Geometrijski pregled
Proizvodnja posameznih plošč
Za merjenje ploskosti vsake posamezne plošče se uporablja multisenzorska tehnologija ZEISS, kot so 2D-kamere in konfokalni svetlobni senzorji. Ploskost in odsotnost igel sta ključna dejavnika za zagotovitev odlično izdelanega in enostavno sestavljivega pločevinastega sklopa.

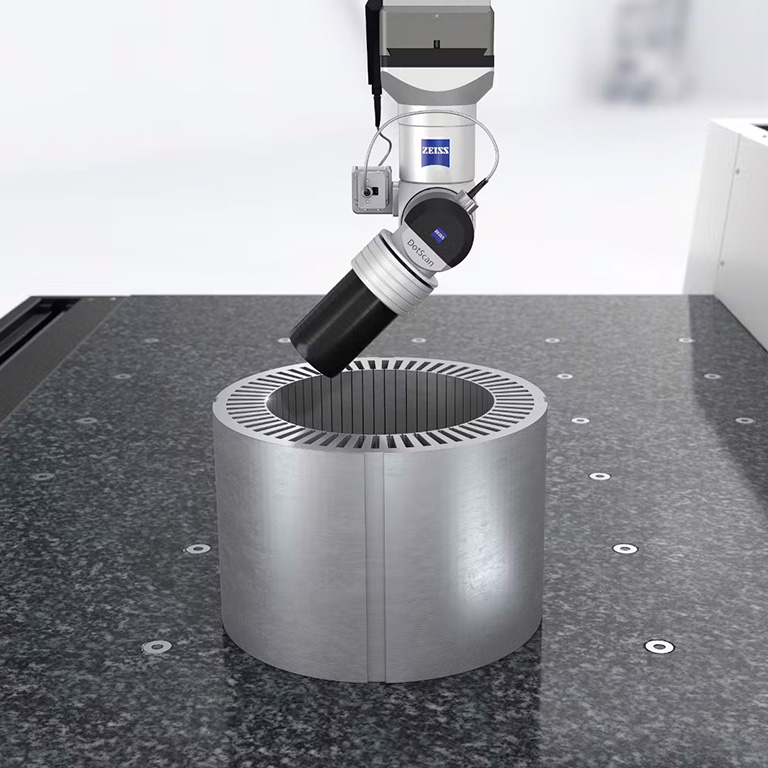

![Rešitve za sestavljanje]({"xsmall":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original.image_file.100.100.file/08-strator-stack-768.jpg","small":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original.image_file.360.360.file/08-strator-stack-768.jpg","medium":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original./08-strator-stack-768.jpg","large":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original./08-strator-stack-768.jpg","xlarge":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original./08-strator-stack-768.jpg","xxlarge":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original./08-strator-stack-768.jpg","max":"https://www.zeiss.si/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original./08-strator-stack-768.jpg"} "Rešitve za sestavljanje")
