Želite hitro in preprosto ustvariti modele CAD iz poligonskih mrež ali oblakov točk? Ali pa želite zmanjšati število ponovitev optimizacije orodja pri izdelavi kalupov in izboljšati podatke CAD za aditivno proizvodnjo?
Vse to je mogoče s ZEISS REVERSE ENGINEERING.
Na tej strani boste izvedeli, kako s programsko opremo ZEISS REVERSE ENGINEERING ustvariti modele CAD za komponente. Če želite popraviti podatke CAD za orodja in natisnjene dele, obiščite to stran in spoznajte vse o možnosti popravil orodij.

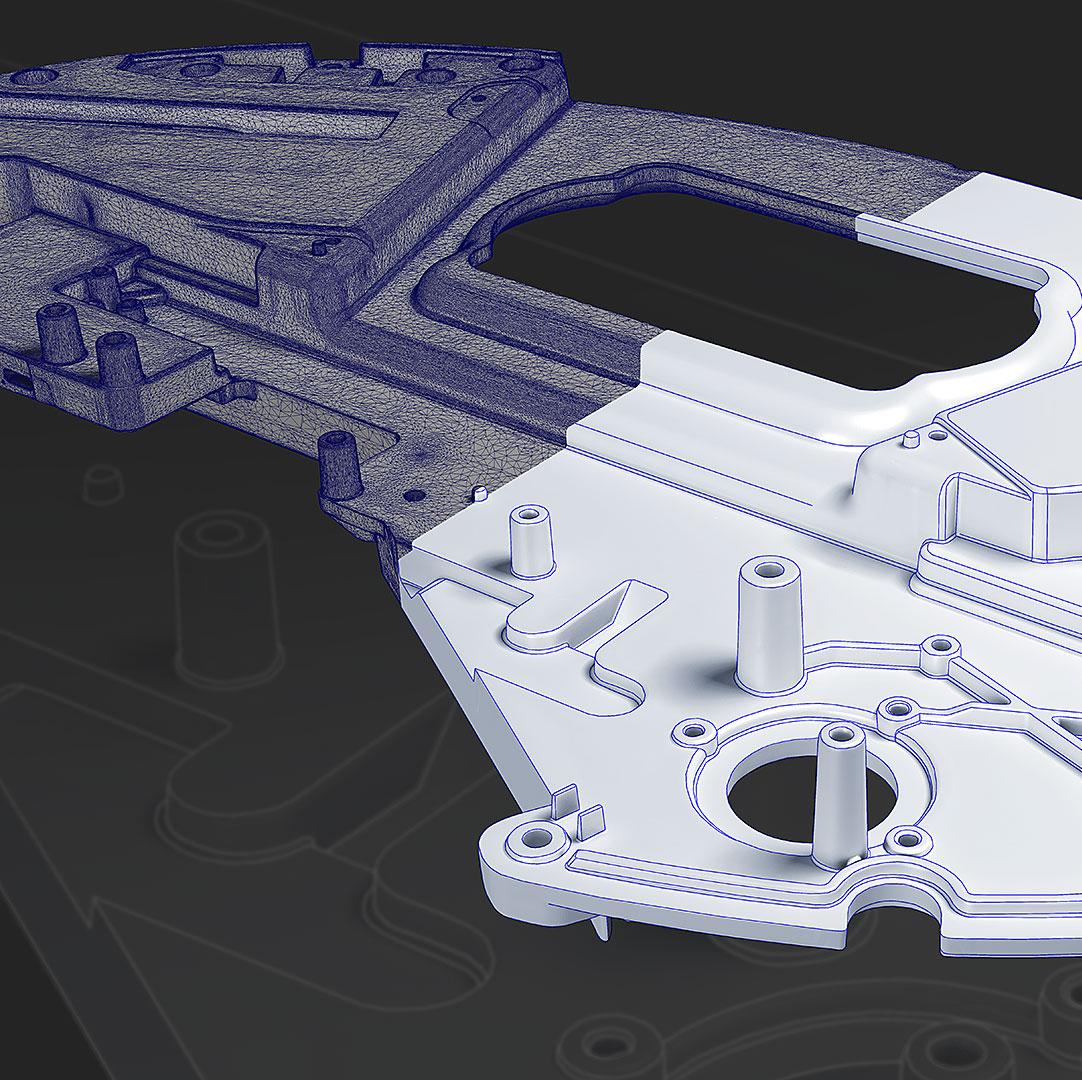

V programu ZEISS INSPECT ali kateri koli drugi programski opremi lahko skenirate komponento in v program ZEISS REVERSE ENGINEERING uvozite podatke STL ali PLY ter formate ASCII. Z le nekaj vodenimi koraki dobite zelo natančen model CAD, ki ga lahko izvozite v običajne formate, kot so IGES, STEP ali SAT.
Zmogljive funkcije za komponente s standardnimi geometrijskimi oblikami: Izvozite podatke v program ZEISS REVERSE ENGINEERING in se lotite njihovega ustvarjanja, združevanja, izločanja in prilagajanja. Programska oprema vas vodi skozi celoten postopek, dokler ne dosežete želenega rezultata.
ZEISS REVERSE ENGINEERING ponuja različne funkcije za doseganje zelo natančnih površin proste oblike. Pri pretvorbi podatkov na primer uporabite možnost »Surface approximation to points« (Približevanje površine točkam) in pustite, da vas programska oprema vodi skozi postopek po korakih, dokler ni ustvarjena vaša komponenta.
Programska oprema je opremljena s posebnimi inženirskimi orodji za natančno preoblikovanje tekočih, organskih oblik. Najboljša stvar pri tem je: Od uvoza podatkov skeniranja do popolnega 3D-modela je potrebnih le nekaj klikov – tudi pri zahtevnih zasnovah predmetov. Oglejte si ta videoposnetek in spoznajte, kako deluje.
Nova funkcija prihrani še več časa pri ustvarjanju modela CAD, še posebej pri kompleksnih geometrijah. Načelo funkcije skiciranja: Skice so ustvarjene v presečnih ravninah, ki so optimizirane z določitvijo dimenzij in omejitev. V zadnjem koraku lahko iz skic s preprostim klikom miške ustvarite telesa.
|
|
|
|
|---|---|---|
|
Funkcije |
ZEISS REVERSE ENGINEERING |
Popravek orodja za izbiro izdelka |
|
Uvoz CAD |
✓ |
|
|
Uvoz mreže/točk |
✓ |
|
|
Poravnava |
✓ |
|
|
Napredne funkcije poravnave |
|
✓ |
|
Urejanje mreže |
✓ |
|
|
Napredne funkcije za urejanje mreže |
|
✓ |
|
Samodejno ustvarjanje površin na podlagi mrež (Autosurfacing) |
✓ |
|
|
Modeliranje zelo natančnih površin proste oblike |
✓ |
|
|
2D-skiciranje |
✓ |
|
|
Napredne funkcije za CAD/površine |
|
✓ |
|
Najustreznejše/ročno ustvarjanje 2D- in 3D-geometrijskih elementov |
✓ |
|
|
Primerjava med nominalno in dejansko vrednostjo |
✓ |
|
|
Napredne analitične funkcije |
|
✓ |
|
Poročanje |
✓ |
|
|
Izvoz CAD |
✓ |
|
